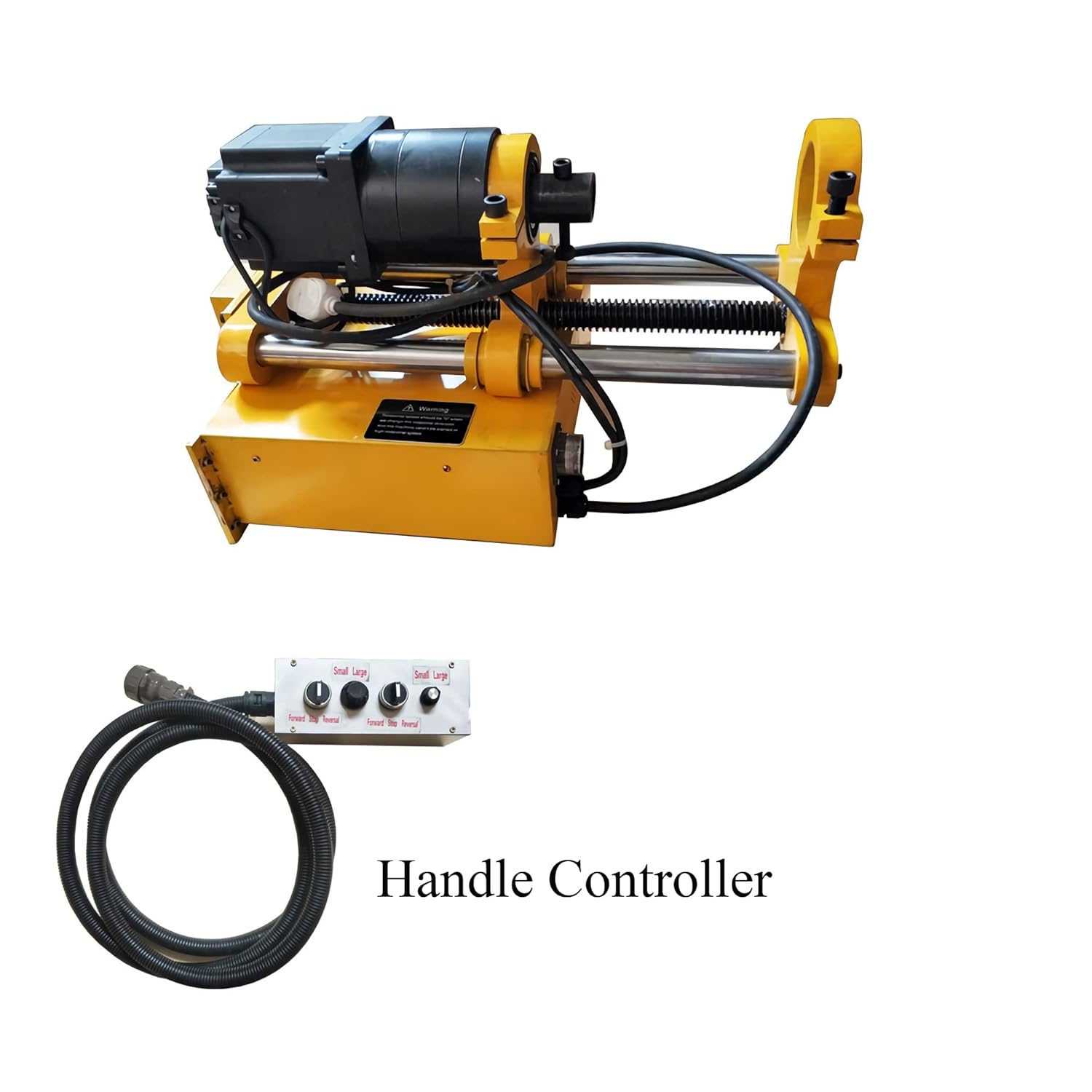

110V XDT50 Portable Line Boring Machine 55-260MM Capacity Engineering Mechanical Hole Drilling Tool with 4.9ft Boring Bar and Accessories
US$895.60
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by italyondisplay.it
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
US$895.60
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by italyondisplay.it
Free 30-day returns Details
Product details
| Management number | 221104426 | Release Date | 2026/05/03 | List Price | US$895.60 | Model Number | 221104426 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- TECHNICAL PARAMETERS: The maximum processing hole diameter is 260mm(10.24inch) and the minimum processing hole diameter is 55mm(2.17inch). Boring bar measures 50*1500MM(1.97*59.06inch) with maximum processing travel of 380mm. The maximum feed depth is 2mm on one side for A3 steel, surface roughness Ra3.2, deviation from circular form0.02mm, and rotate speed ranges from 0-83RPM
- 4.9FT BORING BAR CONSTRUCTION: The boring bar is made of high-strength alloy and structural steel, which has the characteristics of high hardness, high precision, high toughness and good wear resistance. The boring bar can be disassembled separately for convenient installation
- MOTOR AND HANDLE CONTROLLER: The whole machine adopts 110V constant current motor with low speed and large torque, which can realize stable processing and superior performance. The motor controller is equipped with a dynamic delay braking program to avoid vibration during shutdown. After the machine is installed, the controller can be removed to control the machine and perform the drilling operation. The control cabinet is installed under the host, which is conducive to safe operation
- STEPLESS SPEED REGULATION: Stepless speed regulation can be realized for feed processing. The feeding process can be set as required, and it will stop automatically after reaching the limit switch
- INDUSTRIAL APPLICATION: The drilling machine is a portable processing equipment developed for on-site service of construction machinery. It is mainly used for processing inner holes of small tubes and concentric cross holes. Widely used in excavators, cranes, loaders, and other construction machinery
- INSTALLATION AND MAINTENANCE: Machine is installed by fixed clamp and uses different tool rest according to different diameter ranges. Includes necessary accessories for setup and operation. Requires periodic maintenance with slushing oil for boring bar and feed screw, and appropriate grease oil for feed box every half year
| UPC | 785869956513 |
|---|---|
| Color | Yellow |
| Voltage | 110 Volts |
| Brand Name | LGXEnzhuo |
| Manufacturer | LGXEnzhuo |
| Model Number | XDT50 |
| Power Source | 110V constant current motor |
| Material Type | high-strength alloy and structural steel |
| Included Components | Line Boring Machine XDT50, 59 inch Boring bar, Necessary accessories |
| Manufacturer Part Number | E022160 |
| Maximum Rotational Speed | 83 RPM |
